Robot palletizing plan and production line layout
2025/11/19
Product introduction

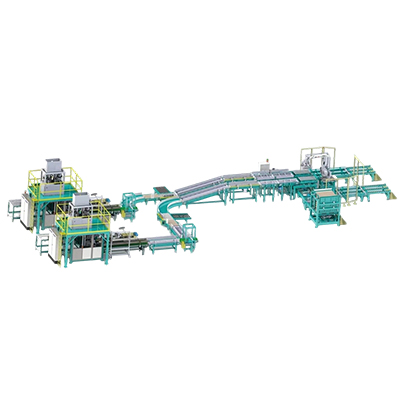

The packaging and palletizing robot production line is composed of core equipment, auxiliary systems and control systems. Packaging and palletizing robots are effective, accurate and flexible, which not only greatly improves production efficiency, but also significantly reduces labor costs and ensures a hygienic working environment.
This production line realizes automated packaging and palletizing of items of different shapes, sizes, and weights through the collaborative work of various equipment, and is suitable for various industrial environments.
Robot palletizing plan and production line layout
Product introduction
The packaging and palletizing robot production line is composed of core equipment, auxiliary systems and control systems. Packaging and palletizing robots are effective, accurate and flexible, which not only greatly improves production efficiency, but also significantly reduces labor costs and makes the working environment hygienic.
Through the collaborative work of various equipment, this production line realizes automated packaging and palletizing of items of different shapes, sizes, and weights, and is suitable for various industrial environments.
System composition
1. Packaging and palletizing robot
Robotic arm
The robotic arm is the main part of the robot. Through the coordinated movement of each joint, it can grasp, carry, rotate and place objects of different shapes, sizes and weights.
hand device
Depending on the packaging items, robot hand devices can be divided into various types such as suction cup type, claw type, and mechanical fingers to adapt to the grabbing needs of items of different materials and shapes.
end effector
As a connection between the hand device and the object, the end effector must have sufficient strength and precision to prevent the object from being damaged during handling.
2. Auxiliary system
conveyor belt system
Responsible for transporting products to be packaged from the front end of the production line to the robot working area, and transporting completed packaging and palletizing products to the next process or warehouse. The conveyor belt system needs to have stable operating speed and accurate positioning capabilities to ensure accurate delivery of products.
packaging machine
Select the appropriate packaging machine for packaging operations based on product characteristics, such as bagging machines, boxing machines, filling machines, etc. Seamless connection between packaging machines and robots is required to ensure the continuity and effectiveness of the packaging process.
Palletizing platform
As an area where robots place packaged products, the palletizing platform must have sufficient load-bearing capacity and stability, and its structural design should facilitate effective palletizing operations by the robot.
3. Control system
PLC control system
As the core control unit of the entire automatic line, it realizes quasi-control and coordinated operations of each equipment through programming. It receives signals from input devices such as sensors and buttons, and outputs control instructions to actuators such as servo drives and frequency converters.
Human Machine Interface (HMI)
Provide operators with an intuitive and friendly operation interface for monitoring the operating status of the automatic line, adjusting working parameters, setting working modes, etc. Data exchange is realized through communication protocols between HMI and PLC, making the information real-time and accurate.
machine vision system
Introducing machine vision technology into automatic lines can realize automatic detection and identification of product position, posture, defects, etc. The machine vision system collects image information through the camera, uses image processing algorithms to analyze and judge, and provides accurate grabbing and placement position information for the robot.
Main technical parameters
| Parameter name | Parameter value | illustrate |
|---|---|---|
| Robot load capacity | 5-200kg | Can be customized according to needs |
| Scope of work | Customized according to application scenarios | Up to 3-4 meters |
| Repeat positioning accuracy | ±0.1mm | High-precision positioning |
| Maximum working speed | Adjust to application needs | High speed operation |
| control system | PLC+HMI | Intelligent control |
| Communication protocol | Ethernet, Profibus, DeviceNet等 | Various communication methods |
| Power requirements | AC380V 50/60Hz | Standard industrial power supply |
| Air source requirements | 0.5-0.7MPa | Clean and dry air source |
Application Notes
- Packaging and palletizing robots are effective, accurate and flexible, improving production efficiency
- Significantly reduce labor costs and make the working environment hygienic
- Suitable for various industrial environments and can handle items of different shapes, sizes and weights
- The intelligent control system allows various equipment to work together to achieve efficient automated production.
