Solid fully automatic packaging and palletizing line
2025/11/19
Automatic unpacking, sealing, weighing, wrapping, labeling and packaging line
Product introduction

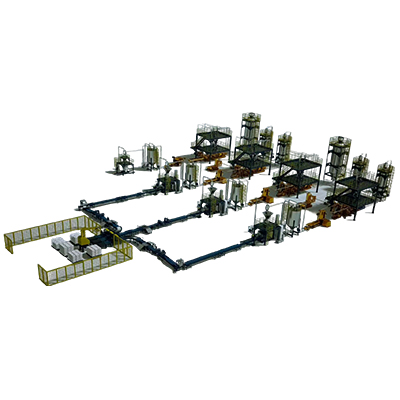

The packaging line consists of an automatic carton unpacking machine, an automatic folding and sealing machine, a weighing and rejecting machine, a lifting and rotating carton sealing machine, a sealing and cutting heat shrink wrapping machine, an automatic labeling machine and other equipment, realizing a complete automated packaging process from unpacking to labeling.
Workflow
Equipment composition
Automatic carton opening machine
Automatically complete carton picking, unpacking, forming and other processes without manual intervention, greatly improving unpacking efficiency.
Automatic folding and sealing machine
It can automatically complete the upper and lower folding and sealing operations of cartons, and can automatically adjust according to the size of the carton to adapt to cartons of different specifications.
Weighing and rejecting machine
Automatically weigh the packaged products, check whether the weight is within the set range, and automatically reject unqualified products.
Jacking swivel device
Lift and rotate the product to a suitable angle to facilitate subsequent processing.
One word carton sealing machine
Sealing the cartons in a straight line to make the sealing firm and beautiful.
Sealing and cutting heat shrink wrapping machine
Automatically complete film sealing, cutting and heat shrink packaging to make product packaging more compact and beautiful.
Automatic labeling machine
Automatically complete label printing and pasting, making labels accurate and flat.
Performance characteristics
- From unpacking to labelingFully automated packaging process
- between devicesSeamless connection, allowing production continuity
- Modular design, can be flexibly configured according to production needs
- equippedIntelligent detection system, let the packaging quality
- Simple operation and convenient maintenance,Reduce labor costs
- Adapt to product packaging of various specifications,Strong versatility
Main technical parameters
| Parameter name | Parameter value | illustrate |
|---|---|---|
| Applicable carton size | L200-500mm × W150-400mm × H100-400mm | Different specifications can be customized |
| packaging speed | 5-15 boxes/minute | Depends on product specifications |
| Power requirements | AC380V 50Hz | Standard industrial power supply |
| Air source requirements | 0.6-0.8 MPa | Clean and dry air source |
| total power | About 15KW | Depends on configuration |
| control system | PLC+touch screen | Intelligent control |
| Production line length | About 10-20 meters | Can be customized according to the venue |
Application Notes
- Suitable for automated packaging in food, medicine, chemical, electronics and other industries
- Can handle carton packaging products of various specifications
- Fully automatic process, greatly improving packaging efficiency and reducing labor costs
- Modular design allows flexible configuration of equipment according to production needs
