Powder packaging unit (horizontal spiral feeding)
2025/11/18
Product introduction

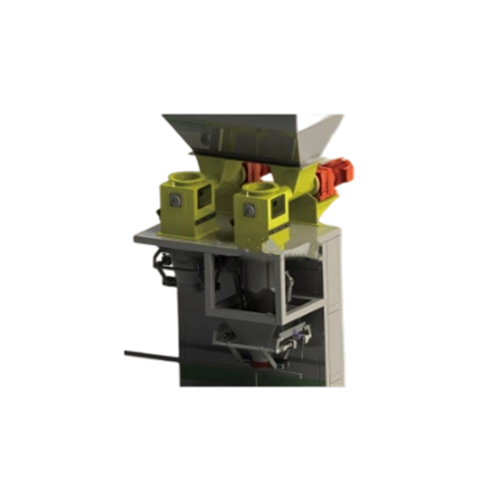

The equipment consists of a material distribution mechanism, a feeding device, a weighing hopper, a weighing box, a material closing mechanism, a dropping hopper, a bag clamp, a control system, etc.; it is suitable for the field of granule/powder processing with good fluidity and small dust content.
Powder packaging unit (horizontal spiral feeding)
Product introduction
The equipment consists of a material distribution mechanism, a feeding device, a weighing hopper, a weighing box, a material closing mechanism, a dropping hopper, a bag clamp, a control system, etc.; it is suitable for the field of granule/powder processing with good fluidity and small dust content.
Equipment composition
Distribution mechanism
Evenly distribute materials to each feeding device
Feeding device
Horizontal spiral feeding ensures stable feeding
Weighing bucket
Quasi-measured material weight
weighing box
High-precision weighing system
Information agency
Accurately control material flow
Drop hopper
Guide materials into packaging bags
bag holder
Stable and fixed packaging bags
control system
Intelligent control of the entire packaging process
Applicable materials
Performance characteristics
- Dual scale working mode: Can be set to alternate, superimpose, and work independently to facilitate operation in different modes
- Wide quantitative range, high precision and fast measurement speed
- Dust covers and dust removal devices can be added according to the characteristics of the material.
- Can be designed with or without metering hopper according to material conditions
- Packaging accuracy and speed depend on material characteristics
- Suitable for particle/powder processing fields with good fluidity and small dust content
Basic parameters
Main technical parameters
| model | Packing weight(Kg) | Packaging speed (bag/hour) | Accuracy | Installation dimensions (mm) (including conveyor) | Machine weight approx. (Kg) |
|---|---|---|---|---|---|
| LS-50L | 25~50 | 200~300 | High precision | 3600×1300×2950 (length×width×height) | 800 |
| LS-50LX | 25~50 | 300~450 | 3600×1700×3550 (length×width×height) | 1000 |
Application Notes
- Suitable for particle/powder processing fields with good fluidity and small dust content
- The dual scales can be set to alternate, superimpose, and independent working modes to adapt to different production needs.
- Dust covers and dust removal devices can be installed according to material characteristics
- Packaging accuracy and speed can be adjusted according to material characteristics
