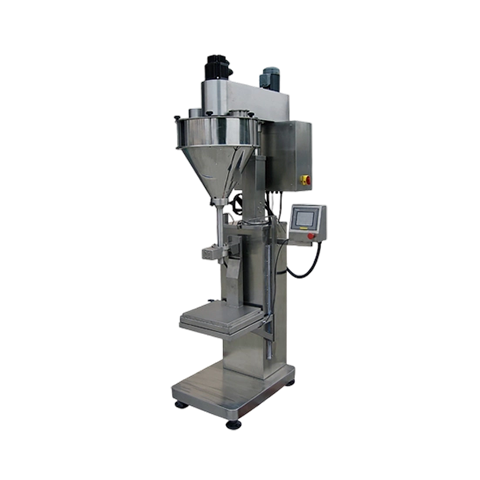

Powder packaging unit (vertical spiral feeding)
2025/11/18
Product introduction
This series of packaging machines can complete weighing, measuring, filling and other tasks. Due to the design of weighing and filling at the same time, it is suitable for powders and small granular materials that require high packaging accuracy, or have uneven density, good or poor fluidity.
Powder packaging unit (vertical spiral feeding)
Product introduction
This series of packaging machines can complete weighing, measuring, filling and other tasks. due to adoptingWeighing and filling at the same timeThe design is suitable for powders and small granular materials with high packaging accuracy requirements, uneven density, good or poor fluidity.
Applicable materials
Main features
This equipment adopts the design of weighing and filling at the same time, and is suitable for powder and small particle materials with high packaging accuracy requirements, uneven density, good or poor fluidity.
- All stainless steel structure: Corrosion-resistant, easy to clean, in line with hygienic standards
- Combined or open transparent material box: Easy to remove and wash without tools
- Servo motor and servo drive control screw: Accurately control the feeding process
- Pneumatic bag clamping device and bracket mounted on weight sensor: Fast and slow filling according to preset weight
- High response speed weighing system: Ensure high accuracy is achieved
- Suitable for various powders or small granular materials with different fluidity
- Can handle materials with uneven density to ensure packaging accuracy
Workflow
Material supply
Materials are transported from the silo to the weighing system through a vertical spiral feeding system
Weighing and measuring
High-precision weighing system monitors material weight in real time
Filling packaging
Fast and slow filling based on preset weight for precision
Sealed output
After filling is completed, it is automatically sealed and the finished product is output.
Main technical parameters
| Parameter name | Parameter value | illustrate |
|---|---|---|
| Packing weight range | 100g-5000g | Can be customized according to needs |
| packaging speed | 10-40 bags/minute | Depends on material characteristics |
| Measuring accuracy | ±0.1%-0.5% | High-precision weighing system |
| Power requirements | AC220V/380V 50/60Hz | Can be customized according to customer needs |
| Air source requirements | 0.5-0.7MPa | Clean and dry air source |
| Machine power | About 2.5KW | Depends on configuration |
Device configuration
Application Notes
- Suitable for powder and small particle materials with high packaging accuracy requirements
- Can handle materials with uneven density to ensure packaging accuracy
- Suitable for materials with good or poor fluidity
- Widely used in food, medicine, chemical and other industries
