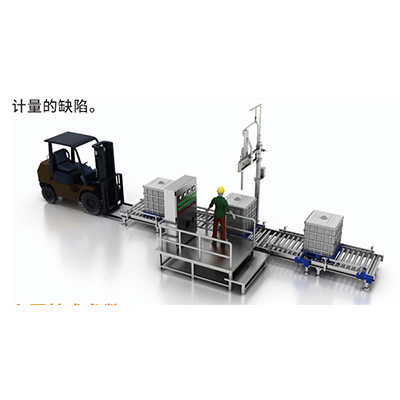

Large barrel filling line

2025/11/19

Product introduction

This model is mainly used for filling large barrels and adopts weighing measurement, which makes up for the quantitative accuracy problems of traditional flowmeter filling machines and the inability to measure viscous liquids.

Large barrel weighing filling machine details page

Large barrel filling line

Product overview
Performance characteristics
Technical parameters

Product introduction

This model is mainly used for filling large barrels and adopts weighing measurement, which makes up for the quantitative accuracy problems of traditional flowmeter filling machines and the inability to measure viscous liquids.

Main advantages

High-precision weighing and measurement
Suitable for viscous liquids
Special for vat filling
Make up for the shortcomings of traditional filling machines

Performance characteristics

High-precision weighing and measurement

Using the weighing measurement method, the measurement accuracy reaches ±1%, far exceeding the traditional flow meter filling machine.

Suitable for viscous liquids

It solves the problem that traditional flow meters cannot measure relatively viscous liquids, and has a wider range of applications.

Special for vat filling

Specially designed for large barrel filling, with a filling capacity of 50-300L, meeting large-capacity filling needs.

efficiency production capacity

The production capacity is about 50-80 barrels/hour, meeting the needs of large-scale production.

Overview of key parameters

Production parameters
production capacity About 50-80 barrels/hour
filling capacity 50-300L
Measuring accuracy ±1%
Physical parameters
Overall dimensions 2000(L)×1030(W)×2300(H)mm
Machine net weight 400kg
Electrical parameters
Supply voltage AC220V,50/60Hz
total power 3.5kw
Air source pressure 0.6-0.8Mpa

Main technical parameters

Parameter name Parameter value illustrate
production capacity About 50-80 barrels/hour efficient production
filling capacity 50-300L Large capacity filling
Measuring accuracy ±1% High-precision measurement
Air source pressure 0.6-0.8Mpa Standard industrial air source
total power 3.5kw Low energy consumption design
Supply voltage AC220V,50/60Hz Standard power supply
Applicable bottle diameter Customized according to non-standard packaging materials Flexible customization
Applicable bottle height Customized according to non-standard packaging materials Flexible customization
Machine net weight 400kg Stable structure
Overall dimensions 2000(L)×1030(W)×2300(H)mm Compact design

Application Notes

  • Specially designed for vat filling,Makes up for the lack of accuracy of traditional flow meter filling machines
  • useWeighing method, accuracy up to ±1%
  • solvedDifficulty measuring viscous liquidsquestion
  • Suitable for large-capacity filling of 50-300L,High production efficiency
  • Can be customized according to non-standard packaging materials.Adaptable
