Automatic batching line
2025/11/19
Product introduction
This production line is widely used in automatic batching packaging production lines for various materials and industries. For batching, you only need to manually put 2 to 9 types of materials into each silo. The computer control system automatically puts various materials into the weighing system in preset proportions. The weighing system will automatically add the ingredients according to the proportion of each material. After each batching is completed, the belt conveyor will automatically transport the materials to the mixer for mixing. After mixing, they will be automatically discharged and lifted to the storage silo by a bucket elevator for automatic quantitative packaging.
Automatic batching and quantitative packaging production line
Product introduction
This production line is widely used in automatic batching packaging production lines for various materials and industries. For batching, you only need to manually put 2 to 9 types of materials into each silo. The computer control system automatically puts various materials into the weighing system in preset proportions. The weighing system will automatically add the ingredients according to the proportion of each material. After each batching is completed, the belt conveyor will automatically transport the materials to the mixer for mixing. After mixing, they will be automatically discharged and lifted to the storage silo by a bucket elevator for automatic quantitative packaging.

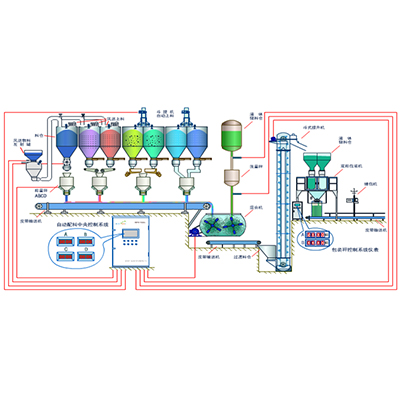

Workflow
Main features
Unique quantitative dosing method
Ensure that materials can flow smoothly, with high precision and smooth operation without clogging.
DCS discrete control system
The batching control system adopts DCS discrete control system, which eliminates the need for on-duty monitoring and has high precision and fast speed.
centralized control system
The centralized control system is convenient and stable, with intuitive display and equipped with a fault alarm system.
Data logging function
Can be equipped with a printer to print class output and related data
Overview of key parameters
Main technical parameters
| Parameter name | Parameter value | illustrate |
|---|---|---|
| Types of ingredients | 2~9 kinds | Can handle a variety of materials |
| Ingredient output | 10T~15T/hour | efficiency production capacity |
| Batching accuracy | ≤0.5% | High-precision ingredients |
| Packaging output | 12~15T/hour | Efficient packaging capabilities |
| Packaging accuracy | 0.2% | High precision packaging |
| Supply voltage | 380V 50HZ | Standard industrial power supply |
| power consumption | 3KW/hour | Low energy consumption design |
| Air source | 0.5Mpa | Standard industrial air source |
| Gas consumption | 0.6m³/hour | Low air consumption design |
Application Notes
- The configuration and requirements of this production line can be designed separately according to process requirements.
- Widely used in automatic batching and packaging of various materials and multiple industries
- Suitable for automatic batching of more than 2 kinds of materials and less than 9 kinds of materials
- Fully automated control, reducing manual intervention and improving production efficiency
