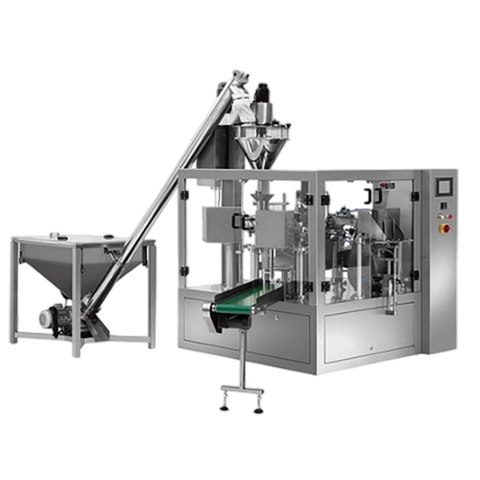

Fully automatic powder bag packaging machine
2025/11/18
Product introduction
This unit is a fully automatic powder bag packaging machine, mainly used for automatic filling and packaging of premade bags for powder materials.
Fully automatic powder bag packaging machine
Product overview
Performance characteristics
Technical parameters
Product introduction
This unit is a fully automatic powder bag packaging machine, mainly used for automatic filling and packaging of premade bags for powder materials.
Performance characteristics
- The whole machine is6-10 workstation structure, the operation is centrally controlled by PLC and large-screen touch screen, and the operation is simple and convenient.
- SupportingAutomatic fault tracking and alarm system, the operating status is displayed in real time.
- Mechanical empty bag tracking and detection device realizesNo bag opening, no blanking, no sealing。
- The main drive system adoptsFrequency conversion stepless speed control, full cam transmission, runs smoothly and has low failure rate.
- The whole machine design complies withGMP standards, and passCE certification。
Overview of key parameters
Packaging parameters
Bag making form premade bags
packaging speed 55 bags/minute
Packaging specifications L≤380mm W:90-350mm
Other parameters
Air source 6Kg/cm² 500 L/min
Overall machine weight About 780Kg
Power supply type 380V total power: 3.5Kw
Overall dimensions 2100×1280×1500mm
Main technical parameters
| Parameter name | Parameter value | Parameter name | Parameter value |
|---|---|---|---|
| Bag making form | premade bags | packaging speed | 55 bags/minute |
| Packaging specifications | L≤380mm W:90-350mm | Air source | 6Kg/cm² 500 L/min |
| Overall machine weight | About 780Kg | Power supply type | 380V total power: 3.5Kw |
| Overall dimensions | 2100×1280×1500mm | Work station structure | 6-10 workstations |
Application Notes
- Mainly used for automatic filling and packaging of premade bags for powder materials
- Centralized control using PLC and large touch screen, simple and convenient operation
- Equipped with automatic fault tracking and alarm system, real-time display of operating status
- Mechanical empty bag tracking and detection device prevents bags from being opened, materials dropped and sealed
- The whole machine design complies with GMP standards and has passed CE certification
