Ton bag packaging machine is a special equipment designed for large bag packaging of various granules, powders and irregular powder particles. It is widely used in large-sized packaging of grain, fertilizer, plastic particles, urea, chemical raw materials, ore raw materials and other materials.
This machine is a gross weight quantitative ton bag scale. It can be used with various feeding devices to package granules, powders, mixtures and other materials. It has the advantages of high measurement accuracy, fast canning speed, high degree of automation, stable and reliable performance, and easy use and maintenance. When matched with conveyors, heat sealing machines and other equipment, it can form a continuous packaging production line to complete the weighing, sealing, transportation and other procedures of material packaging.

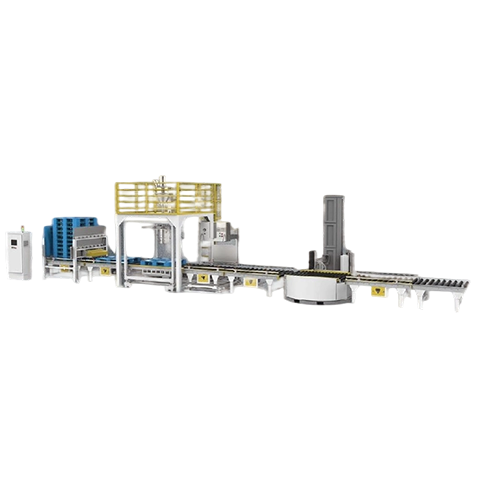

Ton bag packaging machine
Product introduction
LCS-1000K seriesTon bag packaging machine is a special equipment designed for large bag packaging of various granules, powders and irregular powder particles. It is widely used in large-sized packaging of grain, fertilizer, plastic particles, urea, chemical raw materials, ore raw materials and other materials.
This machine is a gross weight quantitative ton bag scale. It can be used with various feeding devices to package granules, powders, mixtures and other materials. It has the advantages of high measurement accuracy, fast canning speed, high degree of automation, stable performance, and easy use and maintenance. When matched with conveyors, heat sealing machines and other equipment, it can form a continuous packaging production line to complete the weighing, sealing, transportation and other procedures of material packaging.
Applicable materials
Main features
- Gravity self-flow feeding, adopts three-level flow control and accurate measurement. (Screw feeding can be used according to the material)
- The weighing system is controlled by PLC program, the communication interface can be configured according to user needs to facilitate online networking and implement real-time monitoring network management.
- Designed with environmental protection concepts and equipped with efficient dust removal devices to avoid on-site dust pollution.
- Humanized design concept, the entrainment device adopts a liftable structure, which is convenient for bagging and entraining (customized air bag clamping can be used according to requirements). The filling process is automatically completed and the bag is automatically removed.
- The weighing control instrument is a full-panel digital adjustment and parameter setting, with functions such as cumulative weight display, automatic tareing, automatic zero calibration, automatic drop correction, over-tolerance alarm and fault self-diagnosis.
Overview of key parameters
Main technical parameters
| Parameter name | Parameter value | illustrate |
|---|---|---|
| packaging capacity | 10-40 bags/hour | Adjustable according to material characteristics |
| Packaging accuracy | ≤±0.2% | High-precision measurement |
| Packaging specifications | 200-1000Kg/bag | Can be customized according to needs |
| Air source pressure | 5-8Bar | Standard industrial air source |
| relative humidity | ≤80% | Working environment requirements |
| Air consumption | 0.02m³/Sec | Equipment operating gas volume requirements |
| ambient temperature | -10~40℃ | Working environment temperature range |
| Supply voltage | AC380V、50Hz | Standard industrial power supply |
Application Notes
- Specially designed for the large bag packaging needs of various granules, powders and irregular powder particles
- Gross weight quantitative ton bag scale, used with various feeding devices
- Can be matched with conveyors, heat sealing machines and other equipment to form a continuous packaging production line
- Suitable for grain, fertilizer, plastic particles, urea, chemical raw materials, ore raw materials and other materials
